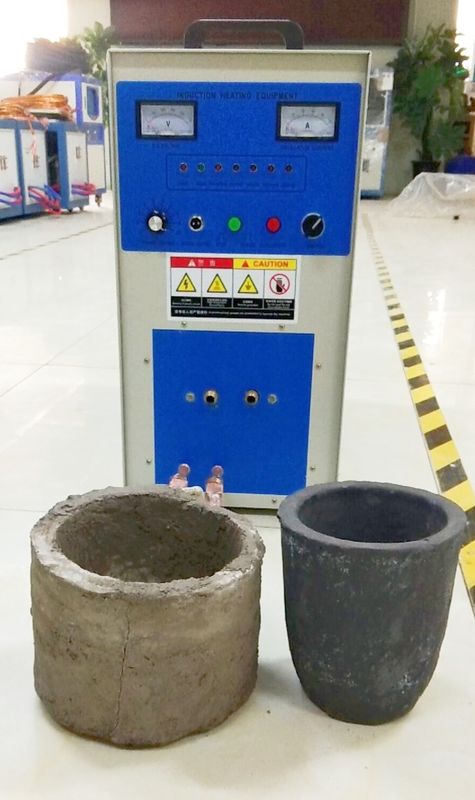

1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace

1kg 3kg 5kg Copper Scraps Melting Furnace

Lieu d'origine Chine
Nom de marque Lanshuo
Certification CE ISO EAC
Numéro de modèle LSW-30
Détails du produit
Taper:
Forneau de fusion par induction
Source d'alimentation:
Électricité
Puissance nominale:
30 kW
Usage:
fonderie de métaux
Application:
Fer acier cuivre or argent aluminium fusion
Capacité de fusion:
1-5kg
Tension d'entrée:
Pour les appareils à commande numérique:
Fréquence d'oscillation:
25 à 40 Khz
Mettre en évidence:

small copper melting furnace

,

3kg induction melting furnace

,

5kg copper scraps furnace

Conditions de paiement et d'expédition
Quantité de commande min
1 ensemble
Prix
USD 1200-2000 / set
Détails d'emballage
caisse en contreplaqué, 1250*350*680mm
Délai de livraison
1-3 jours ouvrables
Conditions de paiement
LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement
3000 ensembles par an
Description du produit

30kw Portable Electric Furnace Induction Melting Furnace

1. Brief Introduction of Induction Melting Furnace:

LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.



2. Technical Parameters of LSW-30 Induction Melting Furnace:

Modle LSW-30
Melting capacity 1-5kg copper gold silver iron steel zinc etc.
Rated Power 30KW
Input voltage 3-phase 380v, 50/60hz
Oscillation frequency 25-40Khz
Current(max) 50A
continuous load rate 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Gross weight 60kg
Gross dimension 1250*350*680mm



3. Main Features of induction heating Melting machine:

(1) High efficiency: Induction power, heat transfers to the crucible in a short time.

(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.

(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.

(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.

(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.

(6) Easy to carry and install: Portable, saving much more room.



1kg 3kg 5kg Copper Scraps Melting Furnace 0

1kg 3kg 5kg Copper Scraps Melting Furnace 1

4. Certificates

1kg 3kg 5kg Copper Scraps Melting Furnace 2

1kg 3kg 5kg Copper Scraps Melting Furnace 3
