4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
4mm 6mm Metal Surface Hardening Quenching Machine

4mm 6mm Metal Surface Hardening Quenching Machine

Lieu d'origine Chine
Nom de marque Lanshuo
Certification CE
Numéro de modèle LCN-1500
Détails du produit
modèle:
LCN-1500
Taper:
Outil de la machine à éteindre par induction
Application:
Arbres Tiges Engrenages Rouleau Durcissement
Longueurs maximales de la partie de serrage:
1500 mm
Longueur maximale des pièces d'extinction:
1500 mm
Les pièces de trempe de plus grand diamètre:
600mm
Les parties d'extinction totales les plus importantes:
300 kg
Vitesse de rotation d'axe:
0 à 200 tr/s
Vitesse de déplacement des pièces:
1-60 mm/s
Précision du positionnement mobile:
± 0,1 mm
Mettre en évidence:

4mm metal hardening quenching machine

,

6mm CNC quenching machine

,

metal surface hardening machine with warranty

Conditions de paiement et d'expédition
Quantité de commande min
1 ensemble
Prix
USD 12000-13000 / set
Détails d'emballage
caisse en contreplaqué
Délai de livraison
7 à 15 jours ouvrables après dépôt
Conditions de paiement
LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement
1000 ensembles par an
Description du produit

LCN-1500 CNC Induction Quenching Hardening Machine Tool

I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools

Model
LSN-2000
LSN-1500
LSN-1000
LSN-600
Max lengths of the clamping parts(mm)
2050
1250
1050
650
Max length of quenching parts(mm)
2000
1200
1000
600
The largest diameter quenching parts(mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed ( mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1


III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:

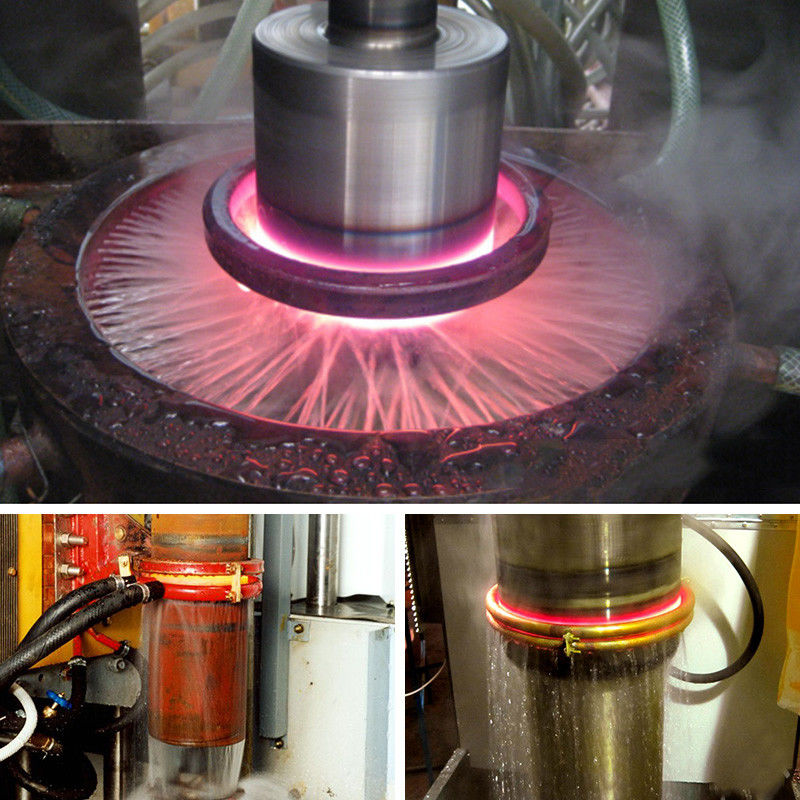

Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
4mm 6mm Metal Surface Hardening Quenching Machine 0
4mm 6mm Metal Surface Hardening Quenching Machine 1

4mm 6mm Metal Surface Hardening Quenching Machine 2

V. Certificates

4mm 6mm Metal Surface Hardening Quenching Machine 34mm 6mm Metal Surface Hardening Quenching Machine 4
